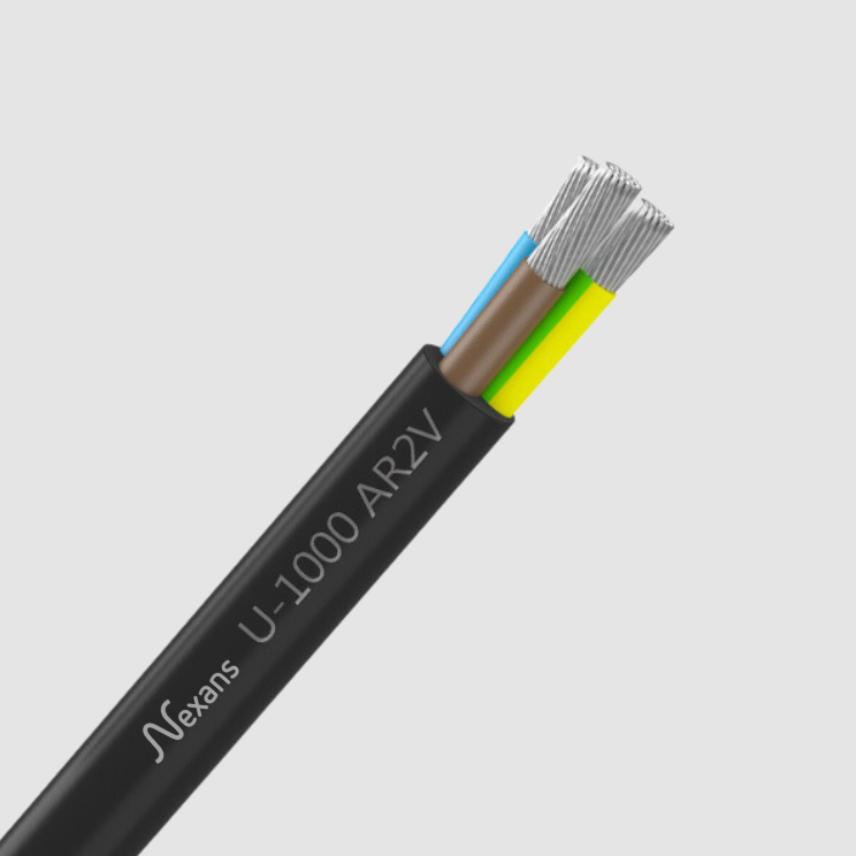

Nexans U-1000 AR2V 3G50

Application

Nexans U-1000 AR2V aluminium cables can be used in all low voltage power installations.

Our range also offers Nexans TWISTAL®, the twisted single-core version of Nexans U-1000 AR2V, specially designed to make three-phase links with neutral. Nexans TWISTAL® simplifies your life and offers many advantages :

• Each core is spotted with a color band
• The twisted core reduces the number of drums and cables pulling
• This solution can allow to reduce the section of used cables (in parallel circuits)
• Nexans TWISTAL® is more flexible and light than a multiconductor, allowing to increase comfort and saving of time

Installation

These cables can be fixed on cable trays, within conduits or fixed to walls.
They also can be buried directly with extra mechanical protection.

Design

• Conductor: stranded circular aluminium - class 2
• Insulation: XLPE - cores identification by colours
• Laying up (for multi conductors): with non hygroscopic filler
• Outer sheath : Lead free black PVC

Construction according to AD8 is possible on request
