Aerial bundled LV cable with messenger - DEH
Aerial bundled LV cable with messenger - DEH
Aerial bundled LV cable for overhaed systems. Rated voltage 0,6/1 KV
Read moreTORSADES LV 3X 70+54.6+25 #D
Nexans ref. 13003330 - Country ref. 13003330
- Packaging: Cut to length (m)
Description
Description
Standards
-
ProductHD 626-6N
-
NationalDEH KT 10.01
Appllication
Aerial bundled LV cable (ABC) type Torsade for overhead power systems, conductors with XLPE insulation.
The cable is suitable for outdoor overhead installation on poles
Construction

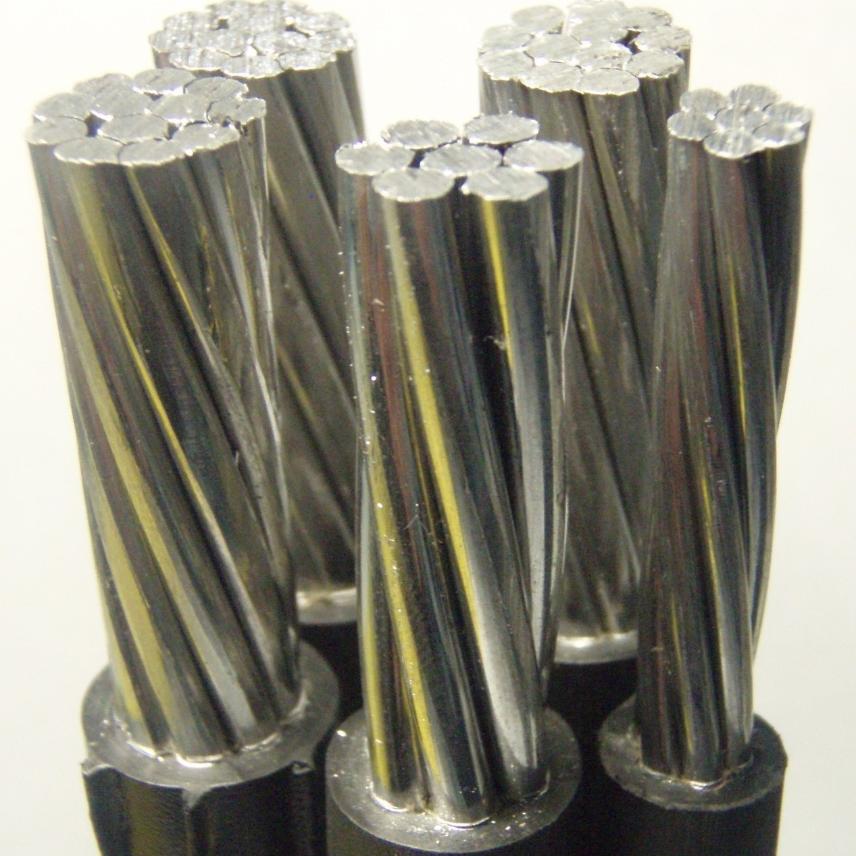

The cable is consisted of three stranded aluminium phase conductors XLPE insulated, a stranded aluminium alloy neutral conductor XLPE insulated for messenger and a stranded aluminium conductor XLPE insulated for public lighting. All the insulated cores are laid-up together.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor shape
Circular
Conductor flexibility
Stranded class 2
Conductor material
Aluminum
Messenger
Aluminium alloy
Insulation
XLPE
Colour
Black
Lead free
Yes
Halogen free
Yes
Dimensional characteristics
Dimensional characteristics
Number of cores
5
Conductor cross-section
70 mm²
Phase Conductor Cross Section
70 mm²
Nominal insulation thickness
1.8 mm
Nominal outer diameter
40.0 mm
Messenger conductor diameter
13.2 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
