ENERGYFLEX® : Photovoltaic cable (>16mm2)
Description
Description
Standards
-
Product2 Pfg 1169/08.2007; CEI 20-91
-
InstallationUTE C 32-502
Application

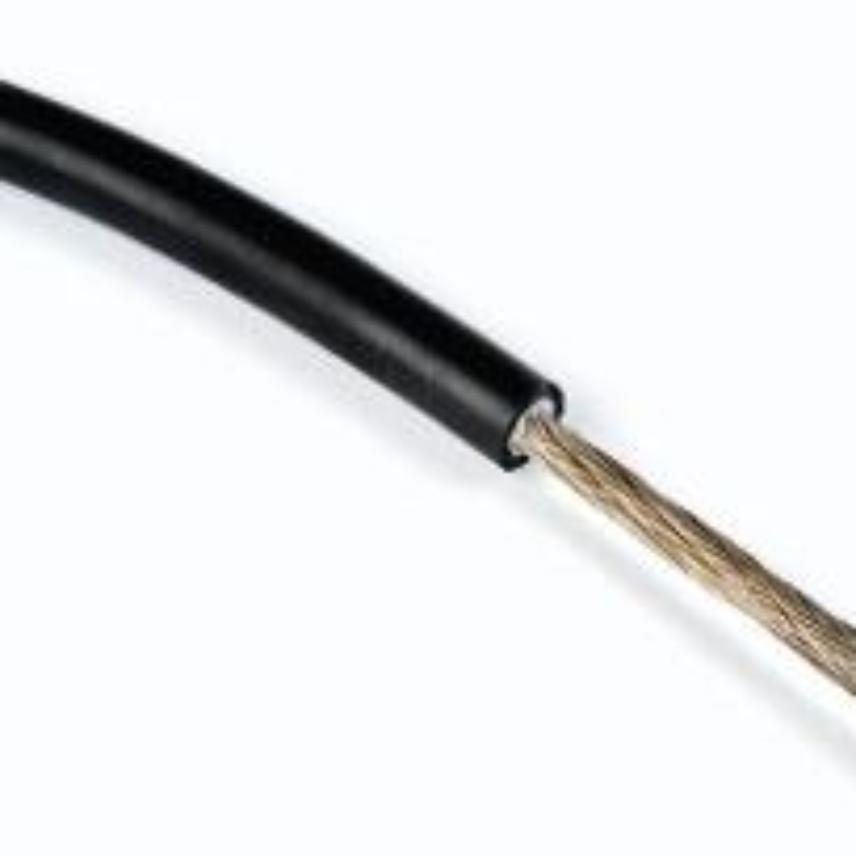

ENERGYFLEX® cable is used for photovoltaic systems. This cable links photovoltaic panels and panels to inverter. It is used for fixed installation outdoors or indoors.
Design
- Conductor: Flexible tinned copper Class 5 according to IEC 60228.
- Insulation: Halogen Free Polyolefin
- Outer sheath: Halogen Free Polyolefin
Colour black*
* Blue or Red strip on request
Other colours on request
Core colours
Single core= White off
Note
the ampacity is under the standards conditions, uninterrupted continuous operation, 90 oC and ambient temperature 60 oC
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Flexible class 5
Halogen free
IEC 60754-1
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
- mm²
Nominal outer diameter
- mm
Approximate net weight
- kg/km
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Max. DC resistance of the conductor at 20°C
- Ohm/km
Usage characteristics
Usage characteristics
Operating temperature, range
-40 ... 90 °C
Max. conductor temperature in service
120 °C
Short-circuit max. conductor temperature
- °C
Gases corrosivity
IEC 60754-2
Smoke density
EN/IEC 61034-2
Ozone resistance
Yes
Weather resistance
Excellent
Flame retardant
IEC 60332-1
Fire retardant
NF C 32-070 C1
Resources
Resources
Documentation
Drum dimension (In french only)
pdf — 13.2 kB
Selling & delivery Information
Marking
ENERGYFLEX® PV1-F PV1000-F 1x s mm² 0.6/1kV Nexans 326 Photovoltaic
Marking FG21M21 (IMQ) on request
