AL/XLPE/CWS/PVC 12/20KV - DEH
AL/XLPE/CWS/PVC 12/20KV - DEH
Single core MV cable XLPE insulated with PVC outer sheath. Rated voltage 12/20 KV
Read moreNA2XSY 20 1X 50/16 C DEH #D NEW
Nexans ref. 13002022 - Country ref. 13002022
- Packaging: Cut to length (m)
Description
Description
Standards
-
ProductIEC 60502-2
-
NationalDEH GR-268
Application
Single core MV cable suitable for outdoor and indoor installation, in air, in grounds, and in cable ducts.
According to CPR regulation the cable is Euroclass Eca
Construction

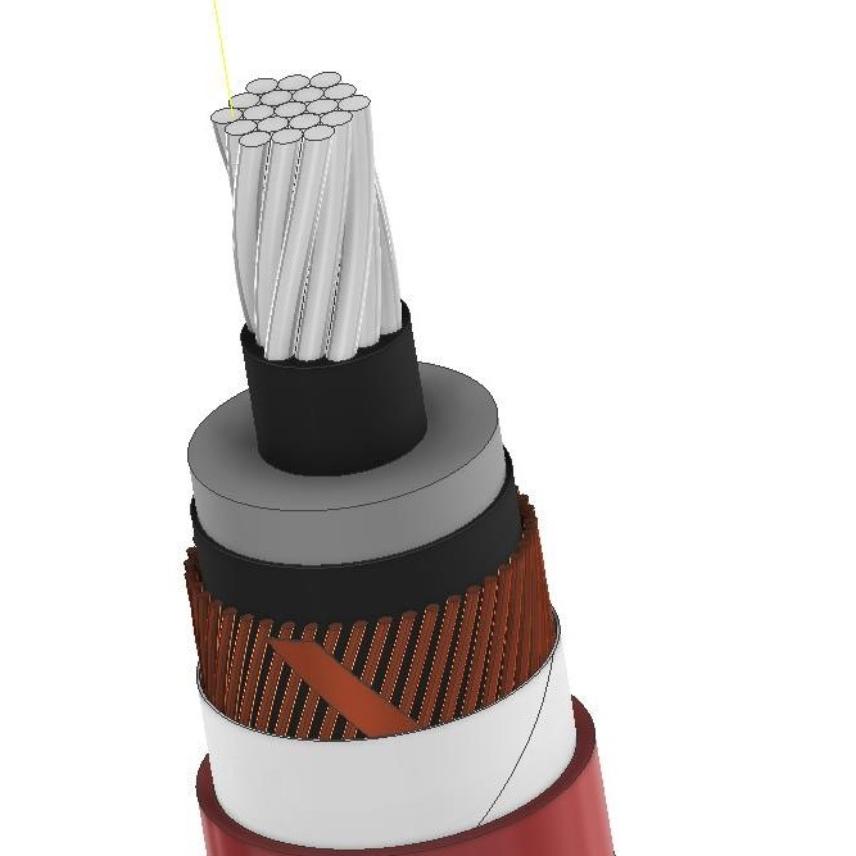

Single core MV cable with stranded Aluminium conductor, conductor screen of semiconducting compound, XLPE insulation, insulation screen of semiconducting compound, copper wires and copper helix tape metallic screen, PVC outer sheath. Rated voltage 12/20 KV
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor flexibility
Stranded class 2
Material of the inner semi-conductor
XLPE-SC
Insulation
XLPE (Cross-linked Polyethylene)
Material of the external semi-conductor
Extruded strippable
Screen
Copper wires + copper tape
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Conductor cross-section
50 mm²
Screen section
16 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12/20 kV
