AAC 50 EQCU #D
AAC 50 EQCU #D
AAC 50 EQCU #D
Read more- Nexans ref. : 13000030
- Country ref. : 13000030
- EAN : 5204609000309
Description
Description
Standards
-
ProductEN 50182
-
NationalDEH GR-99
Application
Overhead All Aluminium Conductor (OHL) for aerial power networks. It is suitable for aerial installation between poles.
Construction

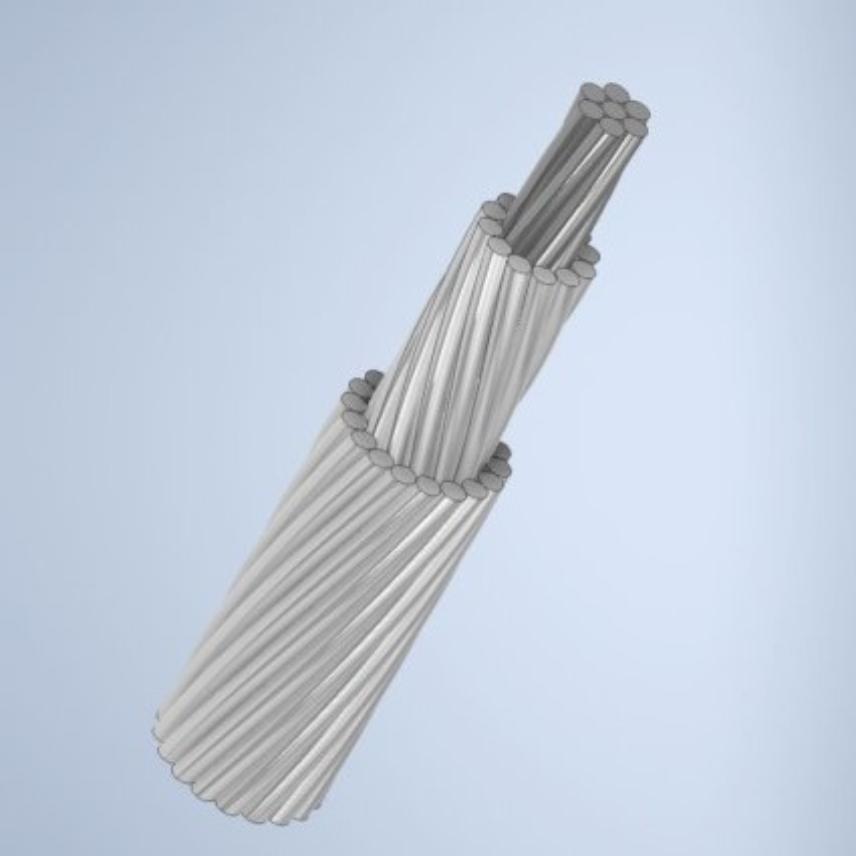

The overhead All Aluminium Conductor (AAC) is consisted of hard drawn aluminium wires. The interstices of the inner layers are filled by grease compound which is suitable for the max operating temperature of conductor
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Number of aluminium wires
19
Diameter Aluminium Wire
2.35 mm
Aluminium cross-section
82.4 mm²
Nominal outer diameter
11.7 mm
Approximate weight
230 kg/km
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
0.354 Ohm/km
Mechanical characteristics
Mechanical characteristics
Minimum breaking load
15 kN
